Defender & S111 Double Din Console Dash

£123.19 including VAT

Raptor Defender & S111 Double Din Dash Console (suitable for pre 2000 vehicles prior to the TD5 facelift). IMPORTANT please read the whole of this description as it contains critical information regarding this product.

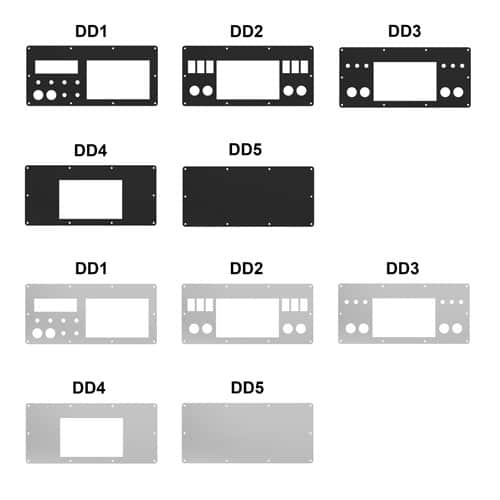

The main body of our Double Din Dash Console is a fully welded steel construction with a resilient powder coat finish. The front panels are made from 2mm aircraft grade anodised aluminium available in silver or black.  The Console is supplied complete with panels, a full size fitting template, spare screws and an allen key for removal and re fitting of the front panels. The Console can be fitted in around 20 minutes with a few basic tools.

Please note this product is not suitable or available for vehicles with air conditioning

Double Din cut out is 182mm x 103 mm – this is the standard size for a Double Din Cage, when looking for a Double Din Radio please note most manufacturers will quote the radio size and not the actual Cage size. Universal Cage Mounts are available from the likes of Halfords. Please be aware when buying Double Din Head Units from China that these often don’t come with a Mount of any description, some will fit in to a Universal Mount and some will not. There are some units out there usually the full size CD players that come with a Mount that is 113mm tall, these will fit in a 103 Universal Mount or we can provide a 113 cut out ( if you require 113mm please put a note on your order).

Also note some manufactures will quote the double din size as 1 dimension such as 7″, this is from corner to corner much like measuring a TV, this will not tell you the opening size.

Please note that our Double Din Consoles are not available as custom cuts due to the fact that the positioning of the cut out is critical. We strongly recommend you look to our original Dash Console that has more option’s, more usable space and a custom cut service available. If you do need a larger screen we would recommend our Defender Dash Console with a single din and that you purchase a CD unit with a pop out double din size screen.

Click here to view our original Defender Dash Console.

This Double Din Console is not a new product, we have been offering this to those who “must have a Double Din Unit” for many years but we have not made it available on our website until now. As with all Raptor products our Double Din Console is design right protected.
